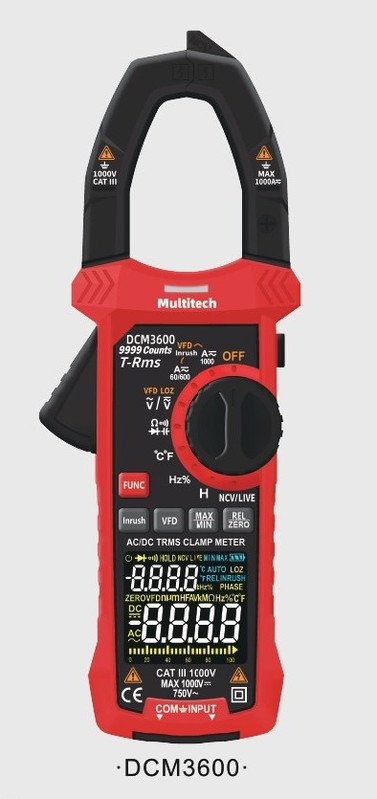

MULTITECH DCM3600 TRMS CLAMP METER

Description

TECHNOLOGY PARAMETER: TECHNOLOGY INDEX

DISPLAY: MAX.9999 COUNTS VA DISPLAY

SAFETY: IEC 61010 -1,POLLUTION LEVEL2 IEC 61010-2-032:CAT III 1000V/CAT IV 600V IEC 61010-2-033:CAT III1000V/CAT IV 600V

OPERABLE ALTITUDE: LESS THAN 2000M (INDOOR USE)

WORKING ENVIRONMENT TEMPERATURE AND HUMIDITY: 0~40?C(<80%RH,<10?C NON CONDENSING) STORAGE ENVIRONMENT TEMPERATURE AND HUMIDITY: (<70%RH,REMOVE THE BATTERY) TAMPERATURE COEFFICIENT: 0.1x ACCURACY /?C(<18?C OR >28?C)

OVER RANGE INDICATION: DISPLAYS “OL”

INPUT POLARITY INDICATION: AUTOMATICALLY DISPLAY “_ ”

MAX VOLTAGE BETWEEN TERMIMALS AND EARTH GROUND :: AC750V OR DC1000V

SAMPLE RATE: APPROXIMATELY 3 TIMES PER SECEOND

POWER SUPPLY: POWER SUPPLY

CLAMP OPENING SIZE: 40MM

DIMENSION: 254x70x34xmm

WEIGHT: 370G
