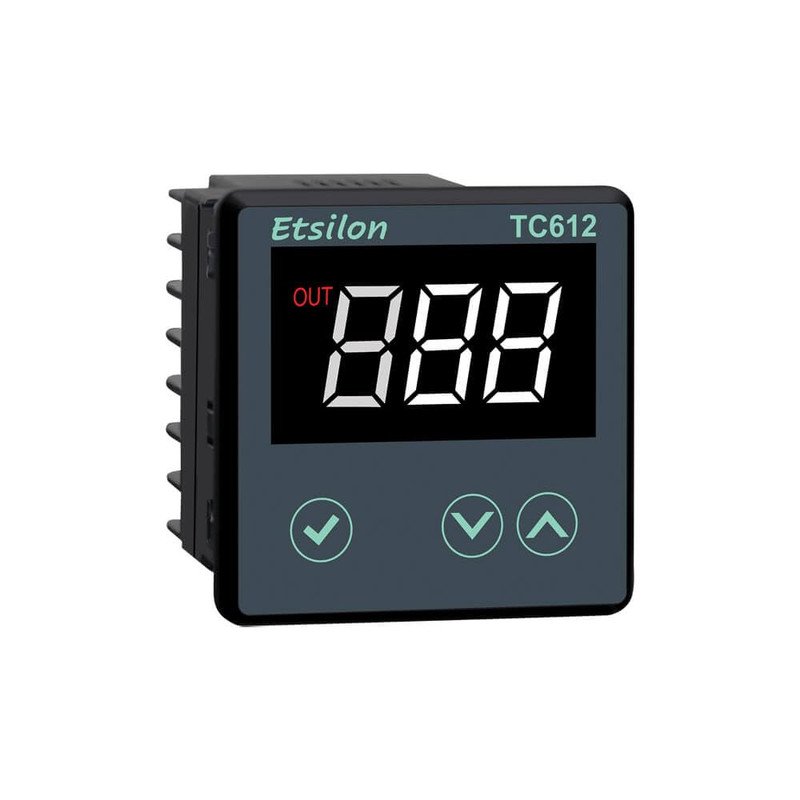

Description
Display: 3 digits (white), 7 segment digital display Display height: 21mm
LED Indications: OUT: Control output ON
Keys: 3 Keys for digital setting
Input: Thermocouple (J, K, T, R, S) RTD (PT100)
Sampling time: 250 ms
Input filter (FTC): 0.2 to 10.0 sec
Resolution: Fixed 1? resolution
Temperature unit: ?C/?F selectable
Indication accuracy: For TC inputs: 0.25% of FS ?1?For R & S inputs: 0.5% of FS ?1? (30 min of warm up TimeFor RTD inputs: 0.1% of FS ?1?
Control method: 1) PID control with auto or self tunning,2) ON-OFF control
Proportional band (P): 1 to 400 ?C, 1 to 752 ?F
Integral time (I): 0.0 to 99.9 min
Derivative time (D): 0 to 999 sec
Cycle time: 0.1 to 99.9 sec
Hysteresis width: 0.1 to 99.9?
Manual reset value: ‘-19.9 to 19.9?
Hysteresis width: 0.1 to 99.9?
Manual reset value: ‘-19.9 to 19.9 ?C/?F
Control output Relay or SSR: Relay contact (SPDT)10A @250V AC / 24V DC, Resistive /SSR drive output (Voltage pulse) *12V DC, 50mA
Supply voltage: 90 to 270V AC/DC, 50/60 Hz, 5VA max
Temperature: Operating: 0 to 50 ?C, Storage: -20 to 75 ?C
Humidity: 95% RH (non-condensing)
Weight: 148gm
